Ultrasound examination in the second and third trimester

Aleksandra Mikic Novakov, MD, PhD

Novi Sad, Yugoslavia

Normal fetal morphology

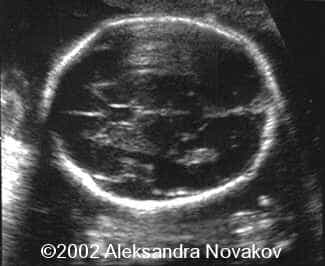

Transverse section of the skull at the biparietal diameter level

  • complete ossification of the skull
  • choroid plexuses fill the anterior and posterior horns of the lateral ventricles
  • anterior and posterior horns less than 10 mm (Va/Hem ratio less than 0.5)

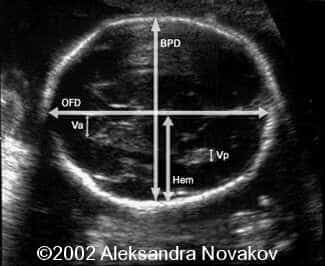

Biometry of the skull and brain at the biparietal diameter level

  • measurement of biparietal diameter (BPD), occipitofrontal diameter (OFD), head circumference (HC),
  • anterior horn of the lateral ventricle (Va), posterior horn of the lateral ventricle (Vp) and hemisphere (Hem)

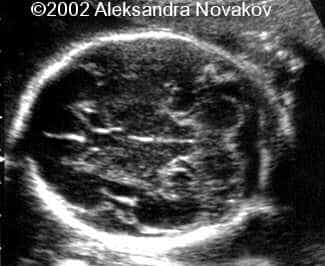

Transverse section of the skull at the level of the posterior fossa

  • cerebellum exists, normal shape
  • vermis seen in whole
  • cisterna magna bigger than 3.5 mm
  • nuchal fold less than 5 mm.

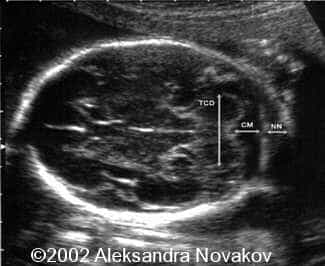

Biometry of the skull and brain at the level of the posterior fossa


Measurement of :

  • transcerebellar diameter (TCD),
  • cisterna magna (CM),
  • nuchal fold (NF)

Transverse section of the head at the level of the orbits

  • orbits of the same size
  • normal interorbital diameter
  • lenses visible
  • measurement of IOD

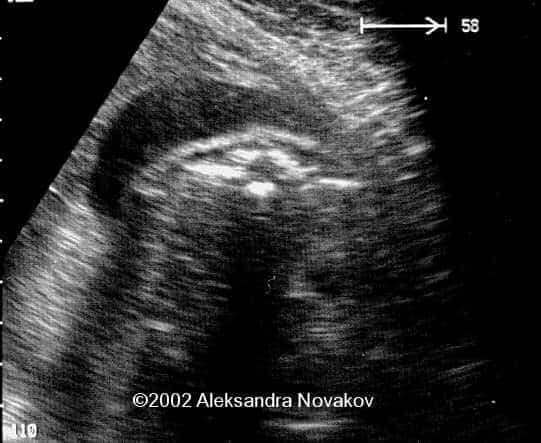

Hard palate


continuity of the hard palate

Coronal section of the face

  • continuity of the upper and lower lip
  • normal shape of the nostril
  • the tip of the nose and the chin seen at the same time

Fetal profile

  • nasal bone seen
  • normal size and shape of the chin, nose and forehead

Neck


continuity of the cervical spine and the skin that covers it

Chest

  • lungs of normal echogenicity, homogenous
  • apex of the heart points to the front and left
  • right chamber closer to the thorax, seems shorter and coarser than the right one
  • both ventricles of the same size
  • both atria of the same size
  • continuity of the interventricular septum
  • continuity of the interatrial septum

Heart - left ventricle outflow tract


  continuity of the interventricular septum and front wall of the aorta

Heart - great vessels


  longitudinal section of the pulmonary artery transverse section of the aorta

Heart - longitudinal section of the aortic arch


  aortic arch with the branches for head and neck (t. brachiocephalicus, a. carotis communis sin, a. subclavia sin)



Longitudinal section of the fetus - chest and abdomen

  • diaphragm completely divides thorax from the abdomen
  • stomach in the abdomen only
  • thorax of the normal size compared to the abdom en

Abdomen - measurement of abdominal circumference

  • continuity of the ribs
  • stomach at the left, normal size and shape
  • measurement of the abdominal circumference

Abdomen - umbilical cord insertion

  • complete continuity of the abdominal wall
  • normal cord insertion

Kidneys

  • normal echogenicity of the parenchyma
  • anteroposterior diameter of the pelvis 5 mm and less


Bladder


  normal size and shape of the bladder

Fetal sex- female / male

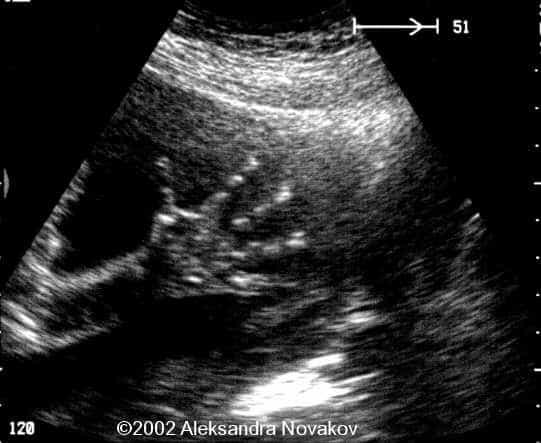

Arm and hands

  • both hands seen at the same time or enough away from each other to be sure that they both exist
  • all phalanx seen
  • extension of all the fingers on both hands
  • normal length and form of all the long bones
  • movements seen in all the joints

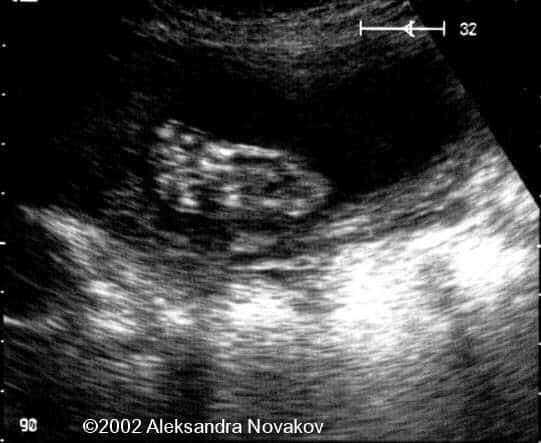

Leg and foot

  • both feet seen
  • five toes, normal position of the big toe
  • normal position of the foot, shin and thigh
  • normal length and form of all the long bones
  • movements seen in all the joints

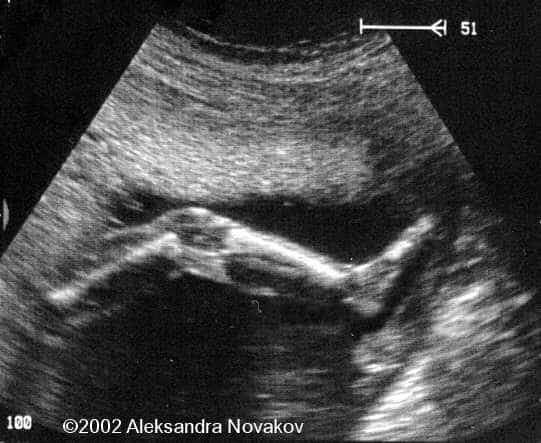

Spine - longitudinal section


  continuity of the spine and the skin above it

Spine - transverse section

  • three ossification centres form closed circle
  • continuity of the skin above the spine

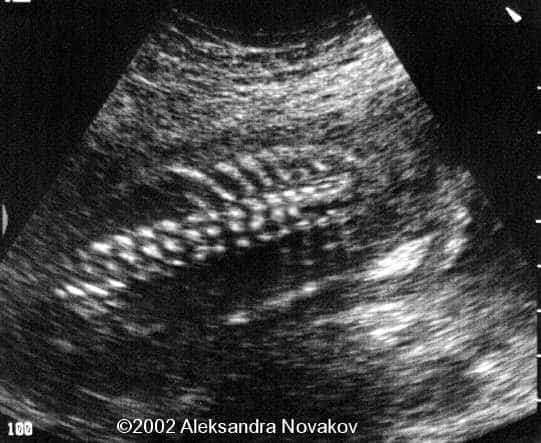

Spine - coronal section


  three parallel lines

Umbilical cord


  three vessels in the umbilical cord - one vein and two arteries

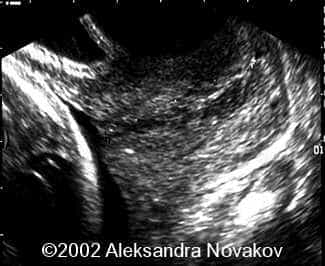

Uterine cervix

  • measure the length of the cervix
  • check whether there is funneling
