Centro Clinico de Maternidad Leopoldo Aguerrevere, Caracas, Venezuela.

Case report

This is a first trimester scan showing trisomy 21 confirmed by the karyotyping.

Images 1, 2: Sagittal planes showing the increased nuchal translucency depth and absent nasal bone of the fetus.

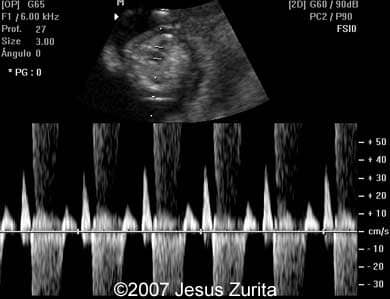

Images 3, 4: Image 3 shows hyperechoic yolk sac; Image 4 shows reversed flow in umbilical artery.

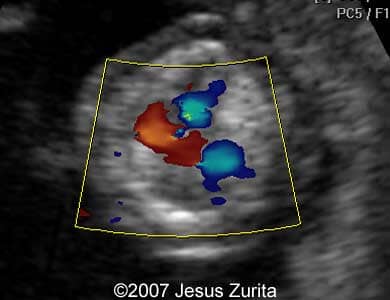

Images 5, 6: Transverse gray scale and color Doppler images at the level of the four chamber view showing atrioventricular septal defect.

Images 7, 8: Images 7 shows atrioventricular regurgitation; Image 8 shows hyperechoic bowel.

Images 9, 10: 3D images of the fetus showing nuchal edema (better visible on the image 10).
