Ring chromosome 14

Fernando Heredia MD, Robin Johns RDMS, Ana M Bircher RDMS, MD, Philippe Jeanty MD, PhD, *V.G. Dev, Md, PhD

Women"s Health Alliance, Nashville Tennessee. * Genetics Associates Inc. Nashville Tennessee.

Chromosomes are highly dynamic structures with a tightly regulated organization. Normal DNA replication results in two linear sister chromatids organized in a parallel configuration so that symmetrical separation can occur at the metaphase-anaphase transition. However, a change in topology from linear to circular may totally disrupt this sequence of events.

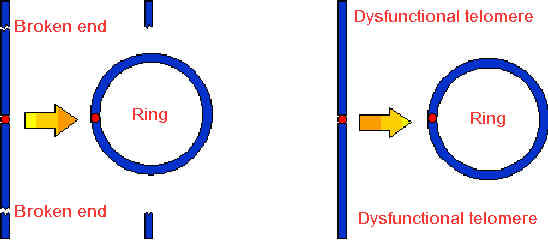

Definition: Circular topology of a chromosome is called a¬† "ring chromosome√Ę‚ā¨. There are two ways in which a ring chromosome can be formed:

  1. Two DNA breaks, one in each arm of the same chromosome followed by fusion of the proximal broken ends, and,
  2. By fusion of dysfunctional telomeres (end-terminal part) from the same chromosome.


On rare occasions, ring chromosomes are found as constitutional aberrations in fetuses or newborn with developmental abnormalities. More commonly, they may arise as acquired genetic abnormalities in cells from tumors or leukemias.

Case report:

This is a 27 year-old patient with an otherwise unremarkable pregnancy.

The following images were obtained during an ultrasound examination performed at 20 weeks of gestation.

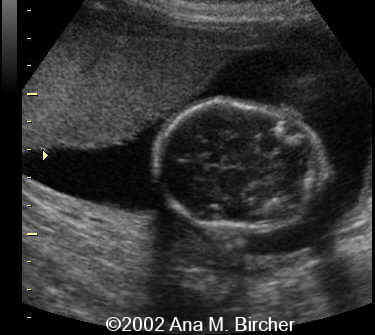

Fetal head is normal.

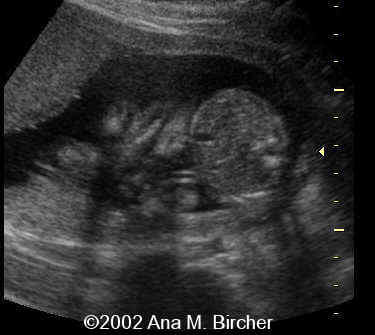

In this image we can clearly see the head to abdomen disproportion.

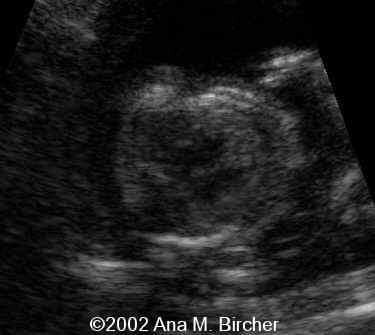

Fetal thorax show an enlarged heart (cardiothoracic ratio 50%).


No stomach was visible in any of the ultrasound examinations performed to this patient.

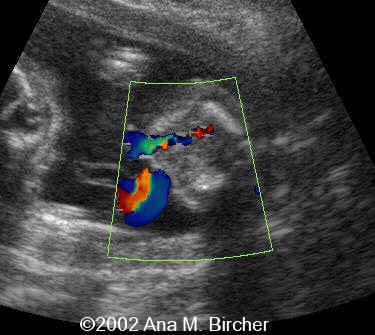

Single umbilical artery was demonstrated with color Doppler.


The fetal biometry parameters show a 3-week discordance between abdomen and skeletal measurements. There was also a 2-week discordance between abdominal and head perimeters.

  • Biparietal diameter :¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬† ¬†42.9 mm¬†18w1d
  • Head perimeter:¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†169 mm¬†19w3d
  • Abdominal perimeter:¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬† 125 mm¬†17w6d
  • Humerus:¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬† 30.3 mm¬†20w0d
  • Femur:¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬† 33 mm¬†20w3d

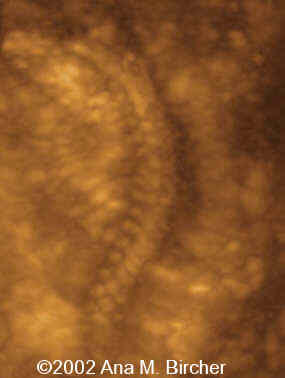

X-ray rendering of the fetal spine. The coronal view clearly shows that this baby had no scoliosis.

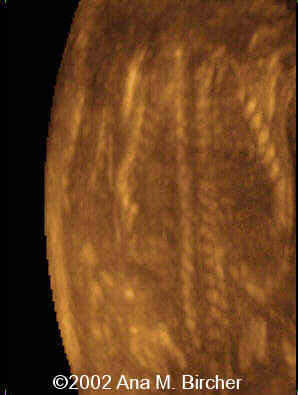

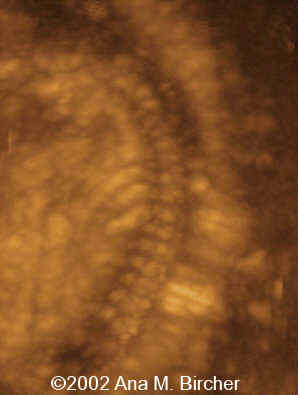

Same rendering of sagittal view of the fetal spine showing thoracic kyphosis.

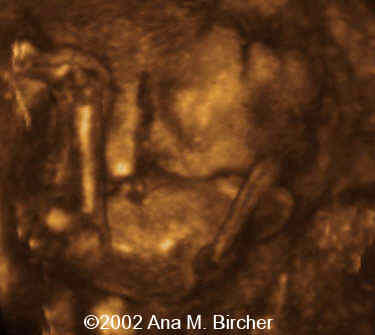

The fetal over-flexed position is seen in this next picture.


In view of all these findings, an amniocentesis was performed. The FISH study (Fluorescent in-situ hybridization) returned normal. But, the conventional cytogenetic study, showed the following:

46, XX, r (14) (p11.2q32) [13]/ 45, XX, - 14 [7]

What does this mean?

In conventional cytogenetics, the geneticist usually analyses 20 metaphases. In this case, out of the 20 analyzed cells, 13 featured a female karyotype (46, XX), with a ring chromosome derived from chromosome 14 [r (14)] . The remaining seven metaphases showed monosomy 14 (45, XX, -14). The ring chromosome is formed by the breakage of p-ter (chromosome 14 short arm terminal portion), which is p11.2, and the q-ter (chromosome 14 long arm terminal portion), which is q32. This means that the chromosome breaks on both sides of the chromosome 14 centromere and these ends then fuse, giving rise to this "ring chromosome".

These following two images show both genetical conditions:

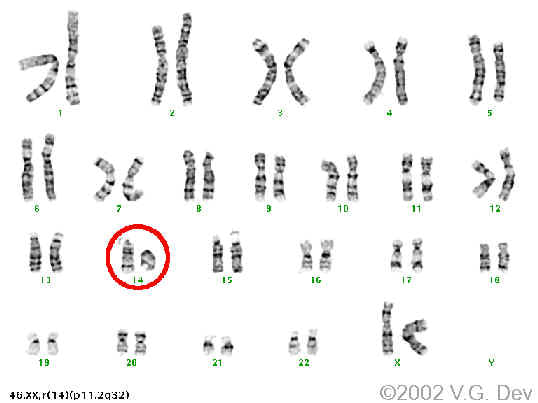

First the ring chromosome 14 (highlighted in red)

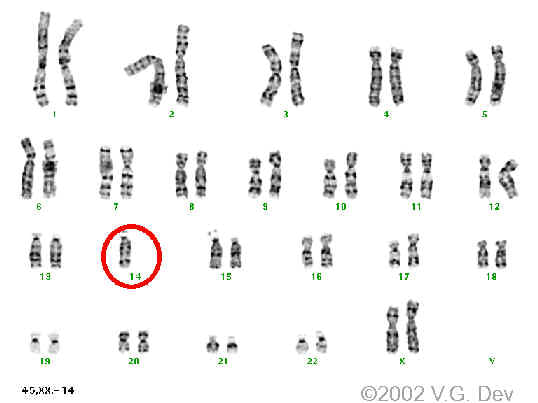

The other cellular line encountered with the missing chromosome 14 (monosomy 14).


Prevalence: Unknown.
Pathogenesis: Ring Chromosome can be a sporadic (de-novo) or transmitted by a carrier parent (often mother).
Sonographic findings: Nuchal cystic hygroma , hypoplastic corpus callosum, IUGR .
Differential diagnosis: Any severe chromosomal anomaly that presents with early onset IUGR, dysgenesis of corpus callosum or cystic hygroma.
Associated anomalies (reported after birth):

  • General: Growth delay.
  • Skull: Microcephaly.
  • CNS: Brain: atrophy, mild dilation of the lateral ventricles.
  • Face: "Ring 14 facial dysmorphism or phenotype√Ę‚ā¨:
    • Narrow, elongated face
    • Narrow palpebral fissure
    • Epicanthus
    • Flat nasal bridge
    • Retrognathia
  • Ocular: These¬†anomalies¬†are a constant feature: retinal dystrophia, which may be specific of the syndrome consists of a hyperpigmentation and sometimes, yellow-white flecks in the macula, and yellow-white spots in the mid-peripheral retina. (These ophthalmic changes are usually concomitant to a breakpoint at 14 q 32.2.4 11).
  • Genital: hypoplastic scrotum.
  • Limbs: lymphoedema of hands and feet, brachydactyly of fingers and toes.
  • Neurological: Different degrees of developmental delay and mental deficiency, early onset seizures (generalized or partial complex type)
  • Other: tendency to pulmonary infections, a disorder of skin pigmentation and¬†generalized hypotonia .

Recurrence risk: Depends of etiology.

Management: When a ring chromosome is encountered, a thorough parental chromosomal examination must be made in order to determine if it is a punctual mutation or if it is a transmitted chromosomal anomaly from a parent.


  1. Jean M, Rival JM, Mensier A, Mirallie S, Lopes P, Barriere P. Prenatal diagnosis of ring chromosome 14 after intracytoplasmic sperm injection. Fertil Steril 1997 Jan;67(1):164-5.
  2. Zelante L, Torricelli F, Calvano S, Mingarelli R, Dallapiccola B. Ring chromosome 14 syndrome. Report of two cases, including extended evaluation of a previously reported patient and review. Ann Genet 1991;34(2):93-7
  3. Ono J, Nishiike K, Imai K, Otani K, Okada S. Ring chromosome 14 complicated with complex partial seizures and hypoplastic corpus callosum. Pediatr Neurol 1999 Jan;20(1):70-2.
  4. Shirasaka Y, Ito M, Okuno T, Fujii T, Nozaki K, Mikawa H. Ring 14 chromosome with complex partial seizures: a case report. Brain Dev 1992 Jul;14(4):257-60
  5. Rethore MO, Caille B, Huet de Barochez Y, de Blois MC, Ravel A, Lejeune J. Ring chromosome 14. A case report of r(14) mosaicism. The r(14) phenotype. Ann Genet 1984;27(2):91-5.
  6. Hisatomi T, Kira R, Sakamoto T, Inomata H.. A case of ring 14 chromosome with ocular manifestations Nippon Ganka Gakkai Zasshi. 2000 Feb;104(2):121-4.
  7. Kristensen I, Wieg C, Friedrich UK. The ring chromosome 14 syndrome Ugeskr Laeger 1992 Nov 9;154(46):3248-9
  8. Portoian-Shuhaiber S, Al-Awadi S, Farag TI, Sundareshan TS, Jindal HR, Al-Rashied AA.. Clinical findings in an Arab boy with ring (14)(mos 46,XY,r(14)/45,XY,-14). Ann Genet 1986;29(2):122-4.
  9. Schmidt R, Eviatar L, Nitowsky HM, Wong M, Miranda S  Ring chromosome 14: a distinct clinical entity. J Med Genet 1981 Aug;18(4):304-7.
  10. Smith J, Smith K, M zard C (2001) Tying up Loose Ends: Generation and Repair of DNA Double-Strand Breaks.
  11. Counter CM, Avilion AA, LeFeuvre CE, Stewart NG, Greider CW, Harley CB, Bacchetti S (1992) Telomere shortening associated with chromosome instability is arrested in immortal cells which express telomerase activity. EMBO J 11: 1921-1929.
  12. Midro AT, Zadrozna-Tolwinska B. Epilepsy in a child with ring chromosome 14 Neurol Neurochir Pol 1993 Jan-Feb;27(1):99-104
  13. de Blois MC, Caille B, Rethore MO, Dufier JL, Lejeune J. r14 syndrome without major dysmorphism. Ann Genet 1990;33(3):155-8
  14. Duarte MH, Lison MP, Ferrari I, Soares LR, Fernandes RM. Epilepsy in ring chromosome 14 syndrome Arq Neuropsiquiatr 1989 Jun;47(2):205-11.
  15. Howard PJ, Clark D, Dearlove J. Retinal/macular pigmentation in conjunction with ring 14 chromosome. Hum Genet 1988 Oct;80(2):140-2
