Synonyms: Conradi‑Hünermann syn­drome, Chondro­dystrophia cal­­ci­ficans congenita.

Prevalence: Over 100 reported cases, many in Australia.

Definition: Depressed nasal bri­dge, mild stippling of the epiphysis (premature calcifications in ultra­sound) that affects the vertebrae, tarsal and carpal bones.

Etiology: Autosomal dominant.
Pathogenesis: Disruption of the phy­sis with abnormal calcification.

Associated Anomalies: Postaxial polydactyly (occasional).

Differential Diagnosis of abnormal coccygeal and talar calcifications: warfarin embryopathy, an­eu­ploidy (trisomies 18, 21, tri­ploi­dy), anencephaly, alcohol and phe­nytoin exposure, peroxisomal disorders, Smith‑Lemli‑Opitz syn­drome, GM₁ gangliosidosis.

Related anomalies: Chondro­dys­pla­sia pun­ctata (X‑linked domi­nant type), Dys­plasia epi­physealis punctata, Rhizome­lic chondro­dys­plasia punctata.

Prognosis: Bone changes improve in the mild form; the lifespan and intelligence are normal. The only marker in adults is the nasal ano­maly.

Risk of recurrence: Mendelian inheritance.

Management: Standard prenatal care.

MESH Chondrodysplasia‑Pun­cta­ta ‑pathology; ‑diagnosis; ‑gene­tics; Femur‑abnormalities; Humerus‑ab­normalities BDE 0153 MIM 11865 POS 3065 ICD9 756.59 CDC 756.575

* Address correspondence to Margaret E. Furness, FRACR, DDU, The Queen Victoria Hospital, 160 Fullarton Road, Rose Park, South Australia 5067, Phone 61‑8‑333 9105 Fax 61‑8‑333 9184

Introduction

Chondrodysplasia punctata refers to a heterogeneous group of conditions which share calcific stippling of cartilage and periarticular soft tissues and, in particular, punctate calcification in the heel, in infancy. These disorders differ in clinical features, severity, inheritance pattern and radiological features, and an agreed upon classification has yet to be established.

The rhizomelic type¹ (an auto­somal recessive disorder of pero­xisomal function) is usually lethal in infancy and consists of proximal limb shortening, short stature, flat facies, cataracts, mental retardation and ichthyosiform skin rash.

The X‑linked dominant type², thought to be lethal in males, is characterized by asymmetrical skeletal abnormalities with short stature, shortening of the long bones, dysplasia and contracture of joints, and scoliosis together with flat nasal bridge, congenital ichthyosiform erythroderma, cicatricial alopecia of the scalp, abnormal hair and cataracts.

An X‑linked recessive form has been described³ in association with a deletion of the terminal short arm of an X chromosome, in brothers with epiphyseal stippling, nasal hypoplasia, ichthyosis and mental retardation.

The term Conradi‑Hünermann syndrome has been applied to an apparently heterogeneous group of conditions whose features include asymmetrical short stature, scoliosis, cataracts, ichthyotic skin and flat facies with nasal hypoplasia⁴. The patients included some with X‑linked dominant, autosomal dominant⁵ and sporadic forms⁶, and can be quite mildly affected. Patients with the mildest clinical features have been diagnosed in mid‑childhood to have Binder syndrome (maxillo‑nasal dysplasia)⁷.

Other causes of calcific epiphyseal stippling include warfarin⁸, alcohol, and phenytoin exposure in pregnancy, several peroxisomal disorders including Zellweger¹ syndrome, Smith‑Lemli‑Opitz⁹ syndrome, trisomies 18 and 21¹⁰, GM₁ gangliosidosis¹¹ and anencephaly.

Chondrodysplasia punctata has been diagnosed by third‑trimester ultrasound in an at‑risk fetus¹², and an association with fetal ascites and polyhydramnios has been reported¹³.

Radiographically visible ossification begins in the calcaneum and talus between 22 and 24 weeks of menstrual age¹⁰. Ossification in the first coccygeal segment usually begins after term, but may occasionally be seen in mid‑third trimester.

Case report

The first pregnancy of a non‑consanguineous couple ended in unexplained fetal death of a male at 31 weeks" gestation. At the time of the second pregnancy, the mother was 28 years old and measured 1.53 m; she had been on no medication. The father was 31, and 1.70 m tall. Neither had the facies of chondrodysplasia punctata.

Ultrasound scan of the second pregnancy at 15 weeks" gestation showed striking echogenicity of the coccyx (fig. 1).

Fig. 2: AP radiograph, showing calcification in coccyx and heel, 29 weeks.

Fig. 3: Lateral radiograph of distal spine.

Coronal clefting affected several cervical and thoracic vertebrae. The femoral length was 48 mm (below the 5^th percentile). Review of the sibling"s postmortem radiographs revealed lesser but definite punctate calcification in the coccyx and heels.

Coccygeal and tarsal calcification study: material and methods

As a result of this diagnosis, we investigated the incidence of coccygeal and tarsal calcification in normal and abnormal second trimester fetuses, to assess the limitations of these findings.

We reviewed postmortem radiographs of a number of 2^nd trimester abortuses known to have aneuploidy or neural tube defects, and of 200 second trimester fetuses either delivered spontaneously or aborted for reasons other than fetal abnormality, and considered normal by a perinatal pathologist. The heel and coccyx regions were inspected in the next 300 ultrasound scans at 16‑22 weeks of pregnancy. Gestational age estimates were based on good menstrual dates where available, on biparietal diameter, or on femoral length.

Results

No normal second trimester fetus had coccygeal calcification on radiographs or ultrasound. Four normal fetuses out of 100 at 17‑18 weeks, and 9 out of 100 at 18‑19 weeks, showed an echogenic focus in the heel on ultrasound.

Postmortem radiographs showed heel calcification in 2 of 31 fetuses with spina bifida, and 3 of 24 with anencephaly (fig. 4).

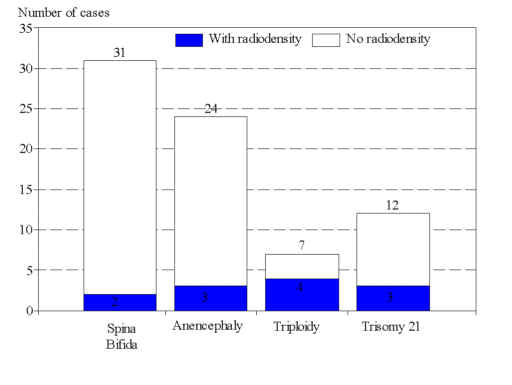

Fig. 4: Number of fetuses with heel radiodensity among spina bifida, anencephaly, triploidy and trisomy 21 subgroups.

Four of 7 triploid fetuses had abnormal calcification, in the coccyx in one case. Cell cultures failed in a 15‑week female fetus which was considered likely to be aneuploid. She had cervical cystic hygromas with hydrops, a solitary kidney, and calcification in coccyx, hips and heels. Three of twelve fetuses with trisomy 21 had premature ossification in the heels, on postmortem X‑ray. They were aged 17,19 and 19 weeks by menstrual dates; we expect that the heels would have had echogenic foci on ultrasound earlier than this.

Of 7 second trimester fetuses or early third trimester infants with punctate coccygeal calcification, 4 had chondrodysplasia punctata, 2 were aneuploid or probably so, and one was anencephalic.

Conclusions

This case demonstrates that pun­ctate calcifications can be visua­lized by ultrasound in the second‑trimester fetus. Ultra­sound is unlikely to differentiate between calcification and ossification. Our preliminary study indicates several aspects which require assessment in larger series for confirmation:

·         An echogenic focus in the heel after 17 weeks" gestation is normal.

·         Before 17 weeks, it may provide additional information in short‑limbed fetuses or those suspected of aneuploidy, but as an isolated finding probably does not warrant karyotyping.

·         Abnormal echogenicity in the heel or coccyx may be a useful marker for warfarin embryo­pa­thy in at‑risk cases, since sonographic assessment of other features (in particular, depression of the nasal bridge) may be difficult.

However, coccygeal calcification is not a constant finding in reported cases of chondrodysplasia punctata and related conditions, and its absence does not exclude them.

References

1. Schutgens RBH, Heymans HSA, Wanders RJA, et al. Peroxisomal disorders: a newly recognized group of genetic diseases. Eur J Pediatr 1986; 144: 430‑440

2. Manzke H, Christophers E, Wiedemann HR. Dominant sex‑linked inherited chondrodysplasia punctata. Clin Genet 1980; 17: 97‑107

3. Curry CJR, Magenis RE, Brown M, et al. Inherited chondrodysplasia punctata due to a deletion of the terminal short arm of an x chromosome. N Engl J Med 1984; 311: 1010‑1015

4. Spranger JW, Opitz JM, Bidder U. Heterogeneity of chondrodysplasia punctata. Humangenetik 1971; 11: 190‑212

5. Silengo MC, Luzzatti L, Silverman FN. Clinical and genetic aspects of Conradi‑Hunermann disease: a report of three familial cases and review of the literature. J Pediatr 1980; 97: 911‑917

6. Sheffield LJ, Danks DM, Mayne V, et al. Chondrodysplasia punctata ‑ 23 cases of a mild and relatively common variety. J Pediatr 1976; 89: 916‑23

7. Maxillo‑nasal dysplasia (Binder syndrome) In, Syndromes of the Head and Neck. Second edition. Gorlin RJ, Pindborg JJ, Cohen MM eds. McGraw‑Hill, New York 1976: 463‑464

8. Hall JG, Pauli RM, Wilson KM. Maternal and fetal sequelae of anticoagulation during pregnancy. Am J Med 1980; 68: 122‑140

9. Gibson R. A case of Smith‑Lemli‑Opitz syndrome of multiple congenital anomalies in association with dysplasia epiphysealis punctata. Can Med Assoc J 1965; 92: 574‑575

10. Romero R, Pilu G, Jeanty P, et al. Prenatal diagnosis of congenital anomalies. Norwalk: Appleton & Lange, 1988: 311‑351

11. Landing BH, Silverman FN, Craig JM. Familial neurovisceral lipidosis. An analysis of eight cases of a syndrome previously reported as "Hurler‑Variantâ€, "Pseudo‑Hurler disease†and "Tay‑Sachs disease with visceral involvement.†Am J Dis Child 1964; 108: 503‑522

12. Duff P, Harlass FE, Milligan DA. Prenatal diagnosis of chondrodysplasia punctata by sonography. Obstet Gynecol 1990; 76; 497‑500

13. Straub W, Zarabi M, Mazer J. Fetal ascites associated with Conradi"s disease (Chondrodysplasia punctata): Report of a case. JCU 1983: 11: 234‑236
