Case of the Week #567

Frantisek Grochal*, Javier Cortejoso**
*Femicare, Center of prenatal ultrasonographic diagnostics, Martin, Slovakia; **Centro Médico Recoletas. Valladolid. Spain

Posting Dates: Sep 15, 2022 - Sep 29, 2022

A 33-year-old primigravida, with non-contributive history, was sent to our office at 20 weeks of gestation. Our ultrasound examination revealed following findings:

Image 1 © 2022 Frantisek Grochal
Image 2 © 2022 Frantisek Grochal
Image 3 © 2022 Frantisek Grochal
Image 4 © 2022 Frantisek Grochal
Video 1 © 2022 Frantisek Grochal

View the Answer Hide the Answer

Answer

We present a case of Schizencephaly. Our ultrasound revealed the following:

  • Right sided schizencephaly characterized as an open-lip type (type II) with a large cortical defect measuring 6.7 mm
  • Bilateral enlargement of lateral cerebral ventricles (12-13 mm)
  • Thickened and short corpus callosum

Due to the poor neurological prognosis the parents opted for termination of the pregnancy.

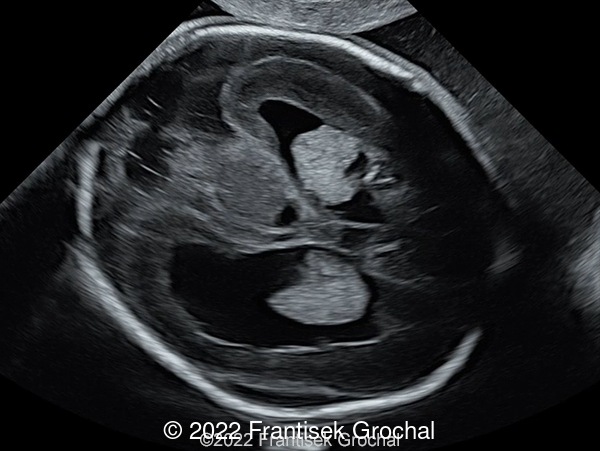

Transverse scan of the fetal head showing enlarged lateral ventricles (asterisks)
Image 1 Transverse scan of the fetal head showing enlarged lateral ventricles (asterisks) © 2022 Frantisek Grochal

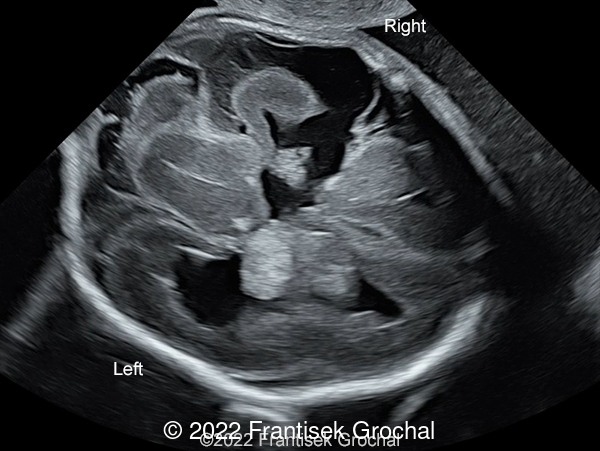

Transverse scan of the fetal head showing enlarged lateral ventricles with striking defect in cerebral mantle on the right side (double-ended red arrow). CP - choroid plexus. Asterisk - cerebrospinal fluid.
Image 2 Transverse scan of the fetal head showing enlarged lateral ventricles with striking defect in cerebral mantle on the right side (double-ended red arrow). CP - choroid plexus. Asterisk - cerebrospinal fluid. © 2022 Frantisek Grochal

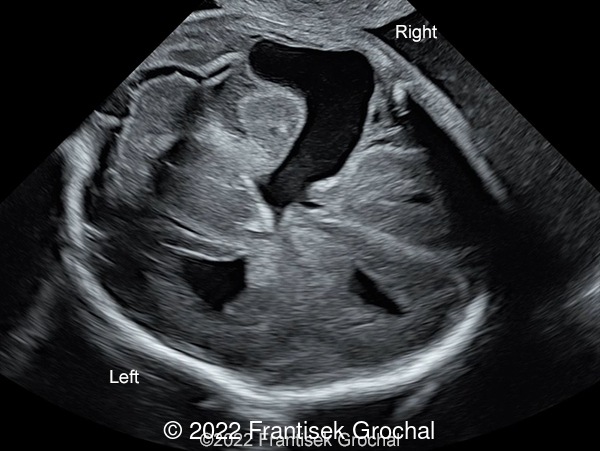

Transverse scan of the fetal head showing striking defect in cerebral mantle on the right side, filled with cerebrospinal fluid, connecting right lateral ventricle with meningeal surface – open-lip schizencephaly
Image 3 Transverse scan of the fetal head showing striking defect in cerebral mantle on the right side, filled with cerebrospinal fluid, connecting right lateral ventricle with meningeal surface – open-lip schizencephaly © 2022 Frantisek Grochal
Transverse scan of the fetal head showing striking defect in cerebral mantle on the right side, filled with cerebrospinal fluid (depicted in blue), connecting right lateral ventricle with meningeal surface – open-lip schizencephaly
Image 4 Transverse scan of the fetal head showing striking defect in cerebral mantle on the right side, filled with cerebrospinal fluid (depicted in blue), connecting right lateral ventricle with meningeal surface – open-lip schizencephaly © 2022 Frantisek Grochal

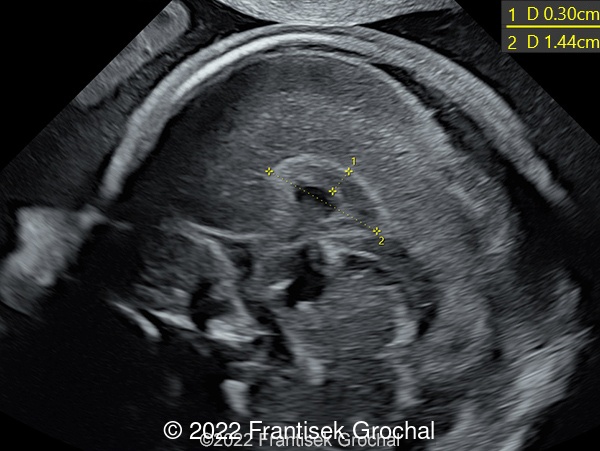

Image 5 © 2022 Frantisek Grochal
Video 1 Video fetal head with enlarged lateral ventricles and striking defect in cerebral mantle on the right side, filled with cerebrospinal fluid (depicted in blue), connecting right lateral ventricle with meningeal surface – open-lip schizencephaly © 2022 Frantisek Grochal

Discussion

The term "malformation of cortical development" was first introduced in 1996 to describe a group of disorders that usually present with neurodevelopmental delay and epilepsy, caused by alterations in the orderly process of generation and maturation of the cerebral cortex [1]. Until recently this term was used to refer to neuronal migration disorders. The current classification of cortical developmental malformations includes defects caused by alterations in one of the three steps of the process: neuronal/glial proliferation, neuronal migration, and cortical organization [2]. Malformations secondary to abnormal postmigrational development are polymicrogyria and schizencephaly (group III.A), cortical dysgenesis secondary to inborn errors of metabolism (group III.B), focal cortical dysplasias (group III.C), and postmigrational microcephaly (group III.D) [3]. In this group of malformations, previously known as disorders of cortical organization, neurons that have reached the cortex fail to organize normal connections [3].

These overlapping maturational phases occur relatively late in pregnancy and do not end until after delivery, making a definitive diagnosis difficult during pregnancy. Ultrasound signs suggestive of cortical development anomalies are early abnormal sulcation, irregular ventricular walls, parenchymal nodules, thin and irregular or underdeveloped cortex, an enlarged hemisphere, and cortical clefting [4,5]. Ultrasound is the method of choice for examination of fetal brain anatomy including the malformations of cortical development [5]. However, some aspects of brain maturation and myelination are better assessed with Magnetic Resonance Imaging (MRI) [6], especially with maternal obesity, challenging fetal position, decreased amniotic fluid or technical difficulties such as near-field reverberation artifact [7].

The term schizencephaly, sometimes called agenetic porencephaly, describes an abnormality of the brain in which cortical gray matter-lined clefts extend through the entire cerebral mantle, from the ependymal lining of the lateral ventricles to the pial covering of the cortex [8]. First described by Wilmarth in 1887 [9], the term was coined from the Greek word "schizen", 'to divide', and introduced by Yakovlev and Wadsworth in 1946, based on their work on cadavers [10]. They described two types of schizencephaly: type I (closed-lip), a fused cleft that prevented the passage of cerebrospinal fluid, and type II (open-lip), a cleft of irregular width permitting cerebrospinal fluid to pass between the ventricular cavity and subarachnoid space [10, 11].

Schizencephaly is a rare birth defect. A study in a Californian population of more than 4 million births found a prevalence of 1.54 in 100,000 births [12], which is similar to a study by Howe et al in the United Kingdom (1.48 in 100 000 births) [13].

The causes of schizencephaly are heterogeneous, and have been associated with young parental age, lack of prenatal care, teratogens (warfarin, alcohol, and cocaine), infections (cytomegalovirus and herpes virus), maternal trauma, monozygotic twin interactions, and thrombophilia [12-14]. The association with syndromic pathologies such as chromosomal aneuploidy, single gene defects, and a few syndromes, is probably incidental. In some familial cases, schizencephaly has been linked to mutations in different genes (EMX2, COL4A1, SHH, and SIX3), however, this is uncommon [15-17]. The epidemiologic evidence associating this defect with young maternal age as well as the link with malformations that have a vascular pathogenesis supports the hypothesis that schizencephaly may be both a primary malformation of cortical development, and a disruptive vascular birth defect [8].

Schizencephaly remains a rare antenatal diagnosis, it is only identified antenatally by ultrasound and/or magnetic resonance imaging in 47% of cases, with most cases after 28 weeks gestation [13]. Although the damaging process that causes schizencephaly may occur early in pregnancy, it may not be apparent until later, and is not often detected on the early second-trimester scan. Fetal sonographic findings of this entity were first described in 1986 by Klingensmith in a 15-year-old primigravida during her 31st menstrual week [18]. Ventriculomegaly is often the first sign detected [19], being easier to diagnose open lip cases than fused ones. They are displayed as wide clefts of cerebrospinal fluid communicating the lateral ventricles and subarachnoid spaces often lined by echogenic tissue [18, 20-29]. Closed-lipped clefts may be suggested in the presence of parallel echogenic tissue extending from the lateral ventricle to the extraaxial fluid space [26, 30]. The cerebral clefts can be bilateral or unilateral, symmetrical or asymmetrical, small or large, and are commonly located in the perisylvian region. Findings visualized by MRI are identical to those described by ultrasound, with better definition of the clefts and better visualization of associated abnormalities such as polymicrogyria and heterotopic gray matter [19, 20, 24-27, 29].

Although schizencephaly can occur in isolation, other brain anomalies are commonly associated [12]. The most frequent are absence of the septum pellucidum, agenesis or dysgenesis of the corpus callosum, ventriculomegaly, gyral malformations (including polymicrogyria and gray matter heterotopias), arachnoid cyst, posterior fossa abnormalities, and optic nerve hypoplasia (septo-optic dysplasia) [12]. Septo-optic dysplasia has been associated with a wide variety of central nervous system (CNS) malformations, and it is possible that those patients who also have schizencephaly represent a distinct subgroup of patients with this disease, termed septo-optic dysplasia plus [31]. One-third of affected patients have a non-CNS abnormality, most thought to be due to vascular disruption, such as gastroschisis, bowel atresia, and amniotic band syndrome [12].

The differential diagnosis between intracranial defects containing cerebrospinal fluid include both developmental and destructive lesions. They include arachnoid cyst, ventriculomegaly, monoventricle of alobar holoprosencephaly, porencephalic cysts, and hydranencephaly [23]. Identification of the gray‑matter lining of the cleft is critical in differentiating schizencephaly from porencephaly and arachnoid cysts, while hydranencephaly and holoprosencephaly can be excluded by detection of normal basal ganglia structures and midline falx [30].

Clinical manifestations of schizencephaly most often include varying degrees of developmental delay, motor impairment, and seizures [23, 32]. The severity of motor and mental disorders is directly related to the extent and location of the anatomical defect [33], but the presence or severity of epilepsy is not [34]. Open-lip bilateral clefts usually result in the most significant impairment, while unilateral closed clefts have a less severe clinical presentation. Sometimes, an apparently open cleft prenatally may become closed postnatally [26].
