The volume to practice can be downloaded here (33MB).

Press INIT to reset Volume Data Set to it's initial acquisition plane. Use Ref Image to cycle through A, B and C planes, without rotating.

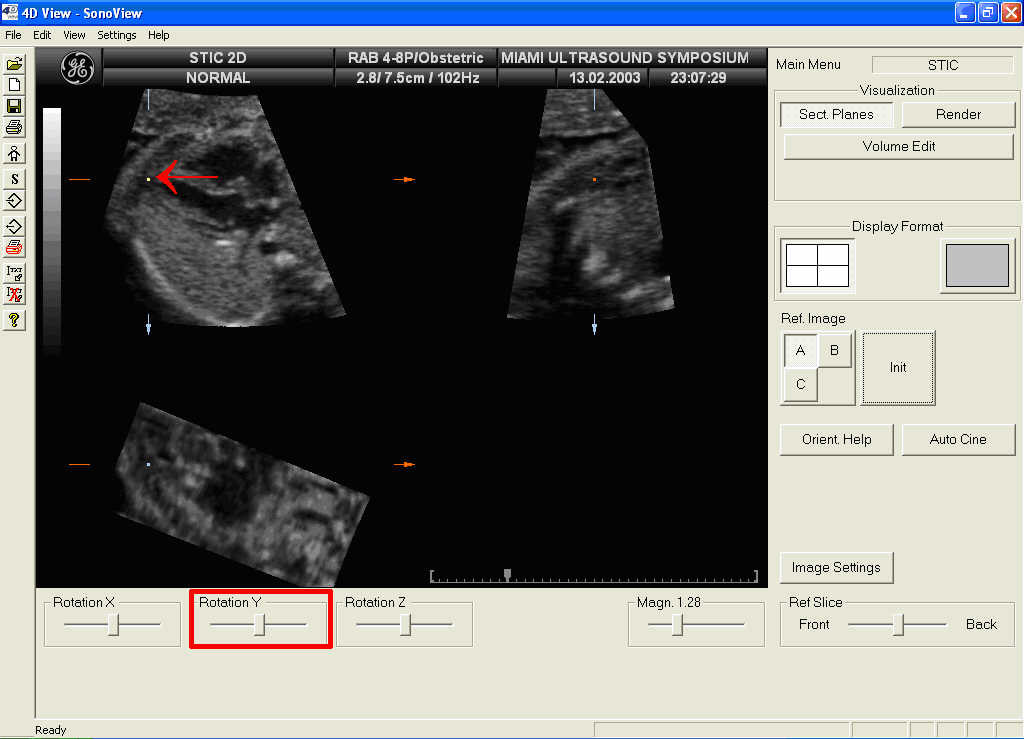

From the Initial Acquisition, move the orientation dot to the apex of the heart and rotate on the Y-Axis to elongate the 4 Chamber View.

Left outflow tract view:

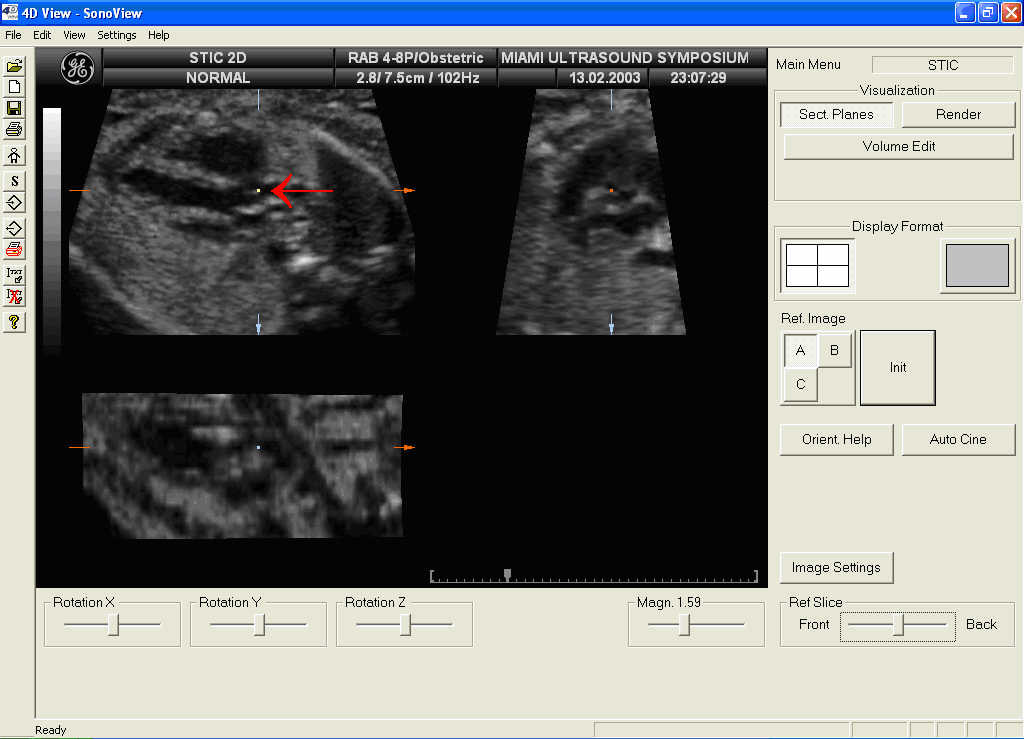

In the A Box, locate LVOT. (using Ref Slice). Place the Reference Dot just above Aortic Valve. (Use Left mouse button to move the Dot)

Great Vessels

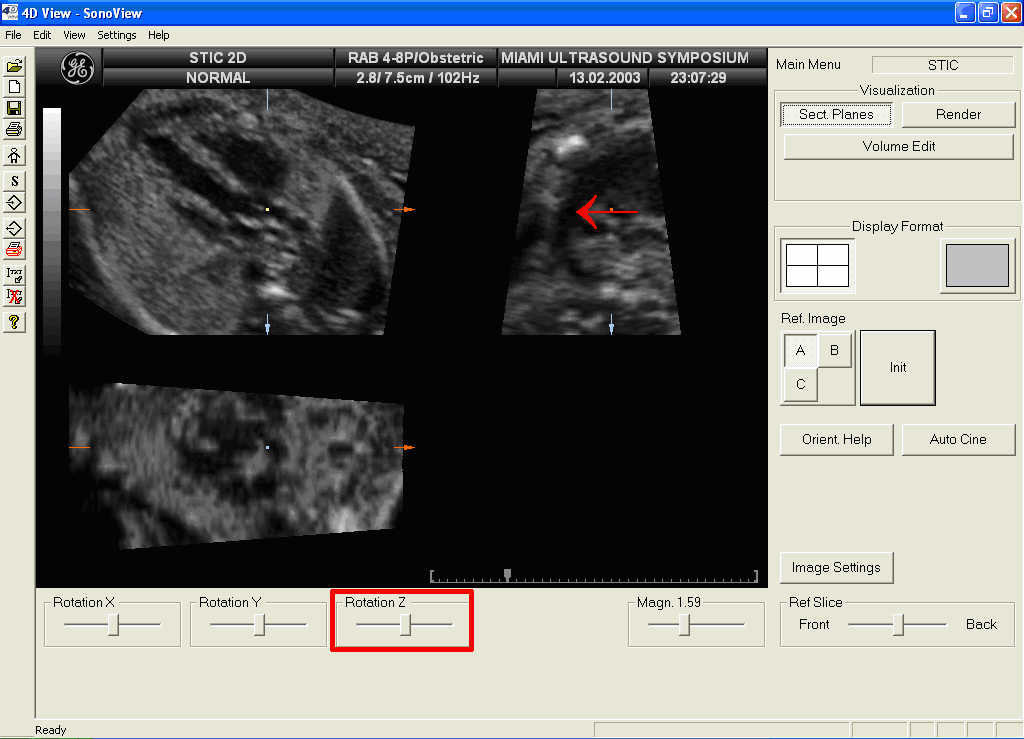

In A Box, rotate image so that the spine is at 6 O'clock. (In A Box, this is a Z rotation).
Notice in the B-Box, the RVOT is elongated, demonstrating normal crossing of the great vessels.

Aortic Arch

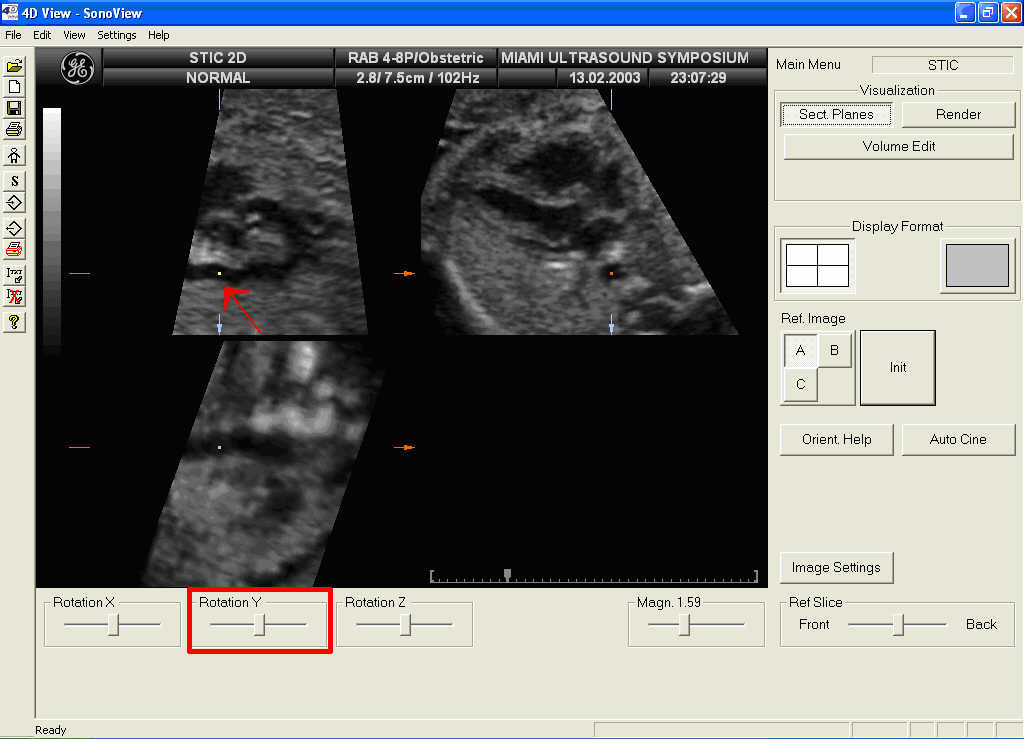

To View the Arches, in A Box place Orientation Dot in Descending Aorta.
Elongate the Descending Aorta in the A-Box. ) This will be a Y-Rotation.

Notice the 4 Chamber View is also in the B-Box.

Ductal Arch

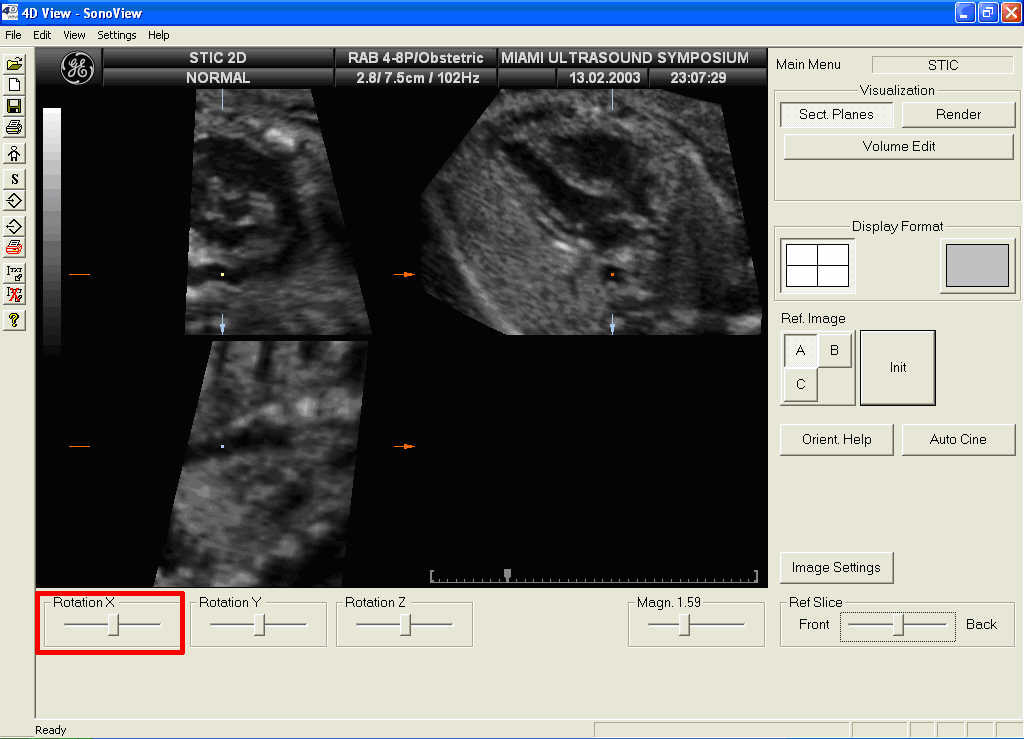

With the Dot in the Descending Aorta in the A-Box, rotate on the X-Axis to view the Ductal Arch.
