Pulmonary valve stenosis

Alberto Sosa MD, Luis Guillermo Diaz Guerrero MD

Perinatology Unit, Carabobo University, Valencia - Venezuela.

This is a case of pulmonary stenosis with also esophageal atresia. There was a familiar history of pulmonary stenosis.

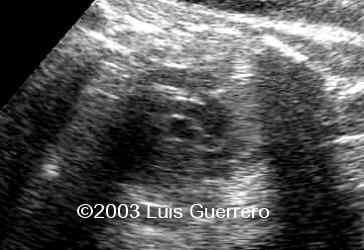

Image 1 is the crossing and division of the pulmonary artery,

Imagen1

Image 2 shows a light hypertrophy of the right ventricle walls

Imagen2

Picture 3 shows an echogenic line in the valve

Imagen3

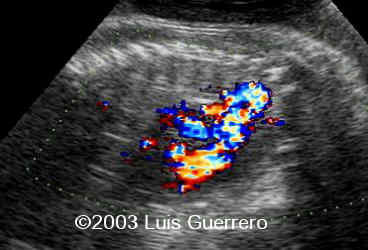

Picture 4 alliassing for the high velocities

Imagen4

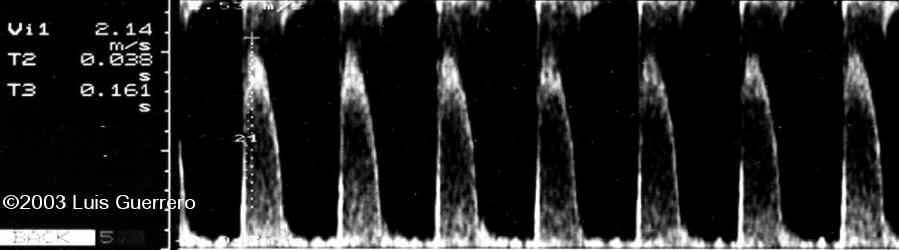

Picture 5 pulsed Doppler of the pulmonic valve ( 214 cm/s !!!!!!!)

Imagen5

Picture 6  is the equivalent image in a similar case

Dilatacion pulmonar

Picture 5

Dilatacion Art.Pulmonar
